SKD®NVRNVR is a rubber and plastic alloy rubber that is processed using Nitrile Rubber (NBR) and Polyvinyl chlorides (PVC) with IPN (Interpenetrating Polymer Networks Structure) technology in liquid state trough a chemical grafting reaction. The product has dual characteristics of both nitrile rubber and chloroprene rubber, which is not just a simple NBR/PVC compound material.

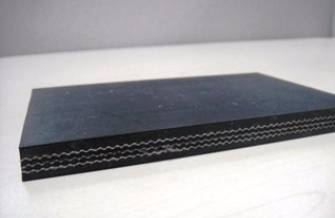

CHEMICAL CHARACTERISTICS: NVR alloy rubber retains the ozone resistance property of Chloroprene rubber (CR) and the oil resistance property of Nitrile Rubber (NBR). Which can significantly improve the weather aging resistance, flame resistance, oil and fuel resistance and chemical resistance properties and other properties of the products. The products comply with REACH, SVHC, ROHS directives and manufactured through strict production process control, ISO: 016ZB12Q22258R0S. PHYSICAL PROPERTY: NVR rubber has outstanding processing property, anti slip property, no migration of color and coloring consistency performance, and excellent oil resistance, tear resistance, wear resistance, and chemical resistance properties (such as detergent, fat and oil, liquid acid alkaline etc.) PRODUCT APPLICATION: NVR can be used in Automobile fuel pipes and pipe external surface rubber, steel braided high pressure and ultrahigh pressure hose, wire and cable jacket, textile industrial roller/ picker, automobile seal, escalator handrail belt, printing and dyeing roller, seals and O-ring and automobile molded parts, aviation rubber products, rubber sheets, rubber belt, conveyer belt, safety boots, working shoes, mining shoes and other products industries.
|
GRADE |
ACN%* |
PVC% |
Mooney Viscosity (ML1+4 100°C) |
Reference on Features and Application |
|
NVR®N5000 Series |
||||
|
N5176P |
18 |
30 |
60±5 |
Excellent low temperature property. Hoses and shoes products. |
|
N5275P |
28 |
30 |
55±5 |
High-pressure hoses, seal strips and Cables. |
|
N5266P |
28 |
40 |
60±5 |
Excellent Ozone resistance and Oil resistance property. |
|
N5072P |
28 |
30 |
70±5 |
High-pressure hoses, seal strips and Cables. |
|
N5075P |
33 |
30 |
80±5 |
Rubber hoses, rubber belt, rubber covered rollers, shoes and other products. |
|
N5075D |
33 |
30 |
75±5 |
Rubber rollers, shoes and other products. |
|
N5066P |
33 |
40 |
65±5 |
Rubber sheets, escalator handrail belts, and spiraled hoses etc. |
|
N5057P |
33 |
50 |
75±5 |
Rubber sheets, textile equipment, conveyer belts, shoe materials. |
|
N5046P |
33 |
60 |
60±5 |
Excellent Oil resistance and abrasive resistance property. Shoe materials and rubber sheets materials. |
|
N5476P |
40 |
30 |
60±5 |
Excellent Oil resistance and high temperature resistance property. Rubber hoses and belts. |
|
N5466P |
40 |
40 |
60±5 |
High oil resistance and temperature resistance, and excellent abrasive resistance property. |
|
N5456P |
40 |
50 |
60±5 |
|
|
N5557P |
45 |
50 |
70±5 |
Superior oil and abrasive resistance properties. |
|
NVR®N6000 Series |
||||
|
N6175P |
18 |
30 |
55±5 |
Excellent low temperature property and good fluidity. |
|
N6166P |
18 |
40 |
65±5 |
Good fluidity. Suitable in rubber hoses, rubber rollers, and rubber foaming. |
|
N6157 |
18 |
50 |
75±5 |
High elasticity and foaming ratio. Foaming and rubber sheets and belts. |
|
N6276 |
28 |
30 |
65±5 |
Suitable for producing foaming sports equipment industries. |
|
N6266 |
28 |
40 |
65±5 |
Tailor-made material |
|
N6257 |
28 |
50 |
75±5 |
Tailor-made material |
|
N6075 |
33 |
30 |
55±5 |
Excellent extrusion flowability property. High pressure hose and fuel hose etc. |
|
N7050 |
33 |
30 |
60±5 |
High pressure hose and fuel hose etc. |
|
N6065 |
33 |
40 |
55±5 |
Excellent rolling processing property. Foaming sheet materials coil materials. |
|
N6055 |
33 |
50 |
55±5 |
Excellent Ozone resistant property. |
|
N6476 |
40 |
30 |
60±5 |
Excellent oil resistant and heat resistant property. |
|
N6466 |
40 |
40 |
60±5 |
Excellent oil resistant and heat resistant property. Uses to produce special products. |
|
N6456 |
40 |
50 |
60±5 |
Good extrusion stability and heat resistant property. Foaming pipe materials. |
|
NVR® N5000X Series |
||||
|
N5075X |
33 |
30 |
55±5 |
Excellent abrasive resistance property. Uses in shoe materials, sheet materials, rubber hose and foaming materials with high tearing strength. |
|
N6075X |
33 |
30 |
50±5 |
|
Note：* is the percentage contained in rubber.
PRODUCT PACKAGING

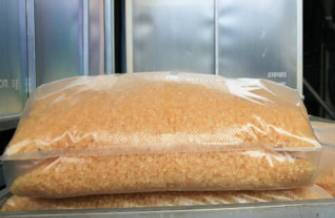

Ø Small packing of 25Kg/ Bag (Woven bag & EVA low melting point bag).
Ø Outer packing is divided into: 1. Pallet + woven bag + wrapping film; 2. Boxes + EVA low melting point bags.
Ø There are two functions to facilitate industrialization of automatic feeding system:
Ø The packaging materials is EVA material, which can be feed into the machine together with the packing bag, no need to remove packing materials.

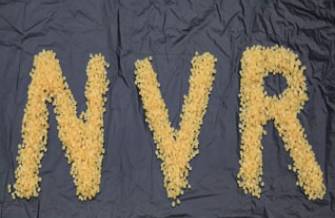

Ø “P” means pellet form. Which can reduce labor intensity on weighing and conveying, and fully implementation of mechanized conveyor feeding systems.
PRODUCT STORAGE
1、The products should be stored in a cool, dry and ventilated environment, avoid direct sunlight, away from heat, storage temperature should not be higher than 40°C.
2、Shelf life: 180 days from date of manufacture under proper storage conditions, expired products may continue to be used after inspections.
SAFETY
NVR® is not dangerous when it is processed in accordance with the product´s MSDS (Material Safety Data Sheet).
